Framed Screens
Outdoor‑ready framed displays that feel as considered as the spaces they live in. Built to withstand the elements while keeping your brand and information front and center

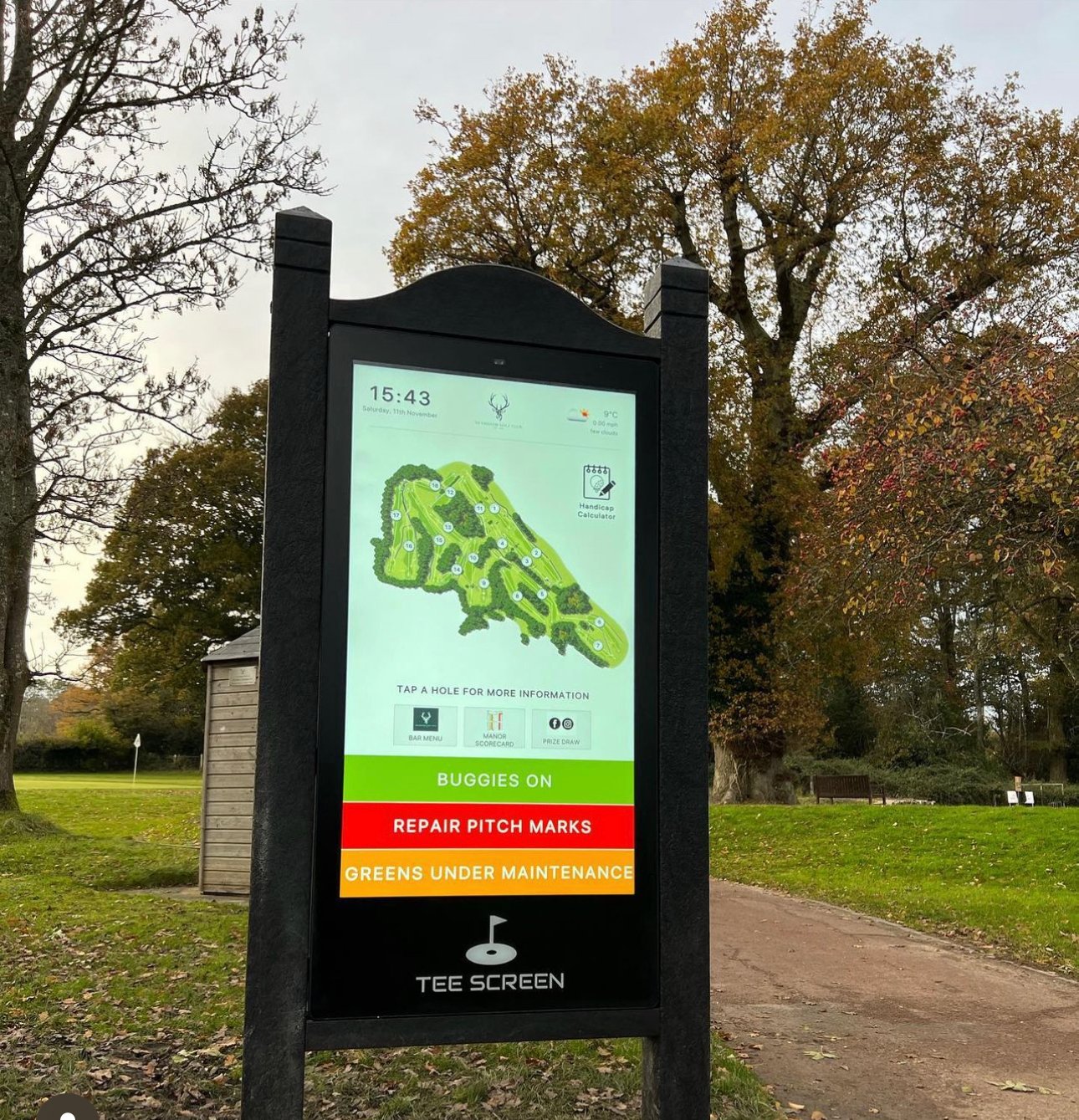

Framed Outdoor Screen
The Framed Outdoor Screen is built to perform in open‑air environments. Its sealed, durable enclosure protects the display through changing weather and shifting conditions.

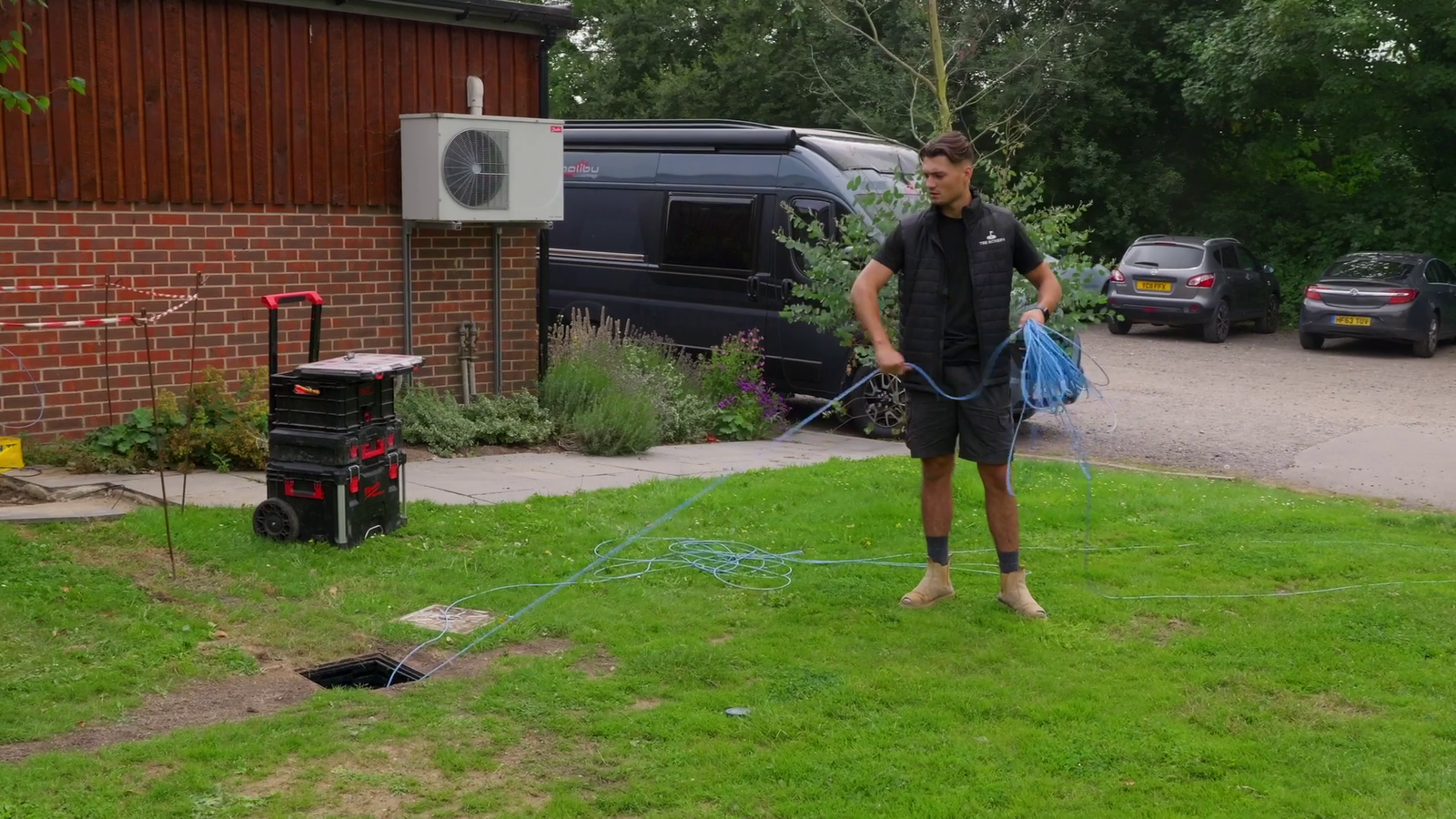

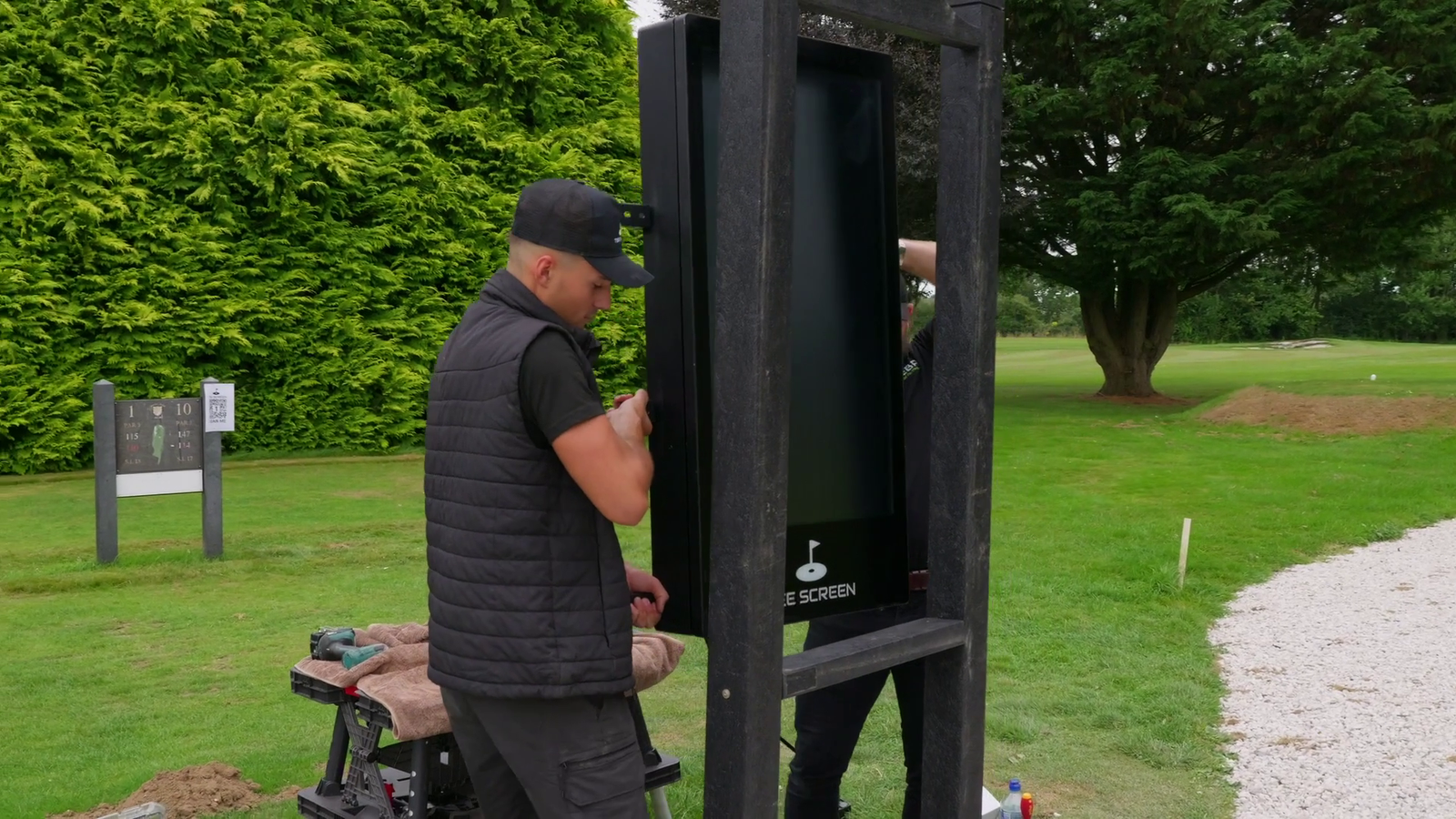

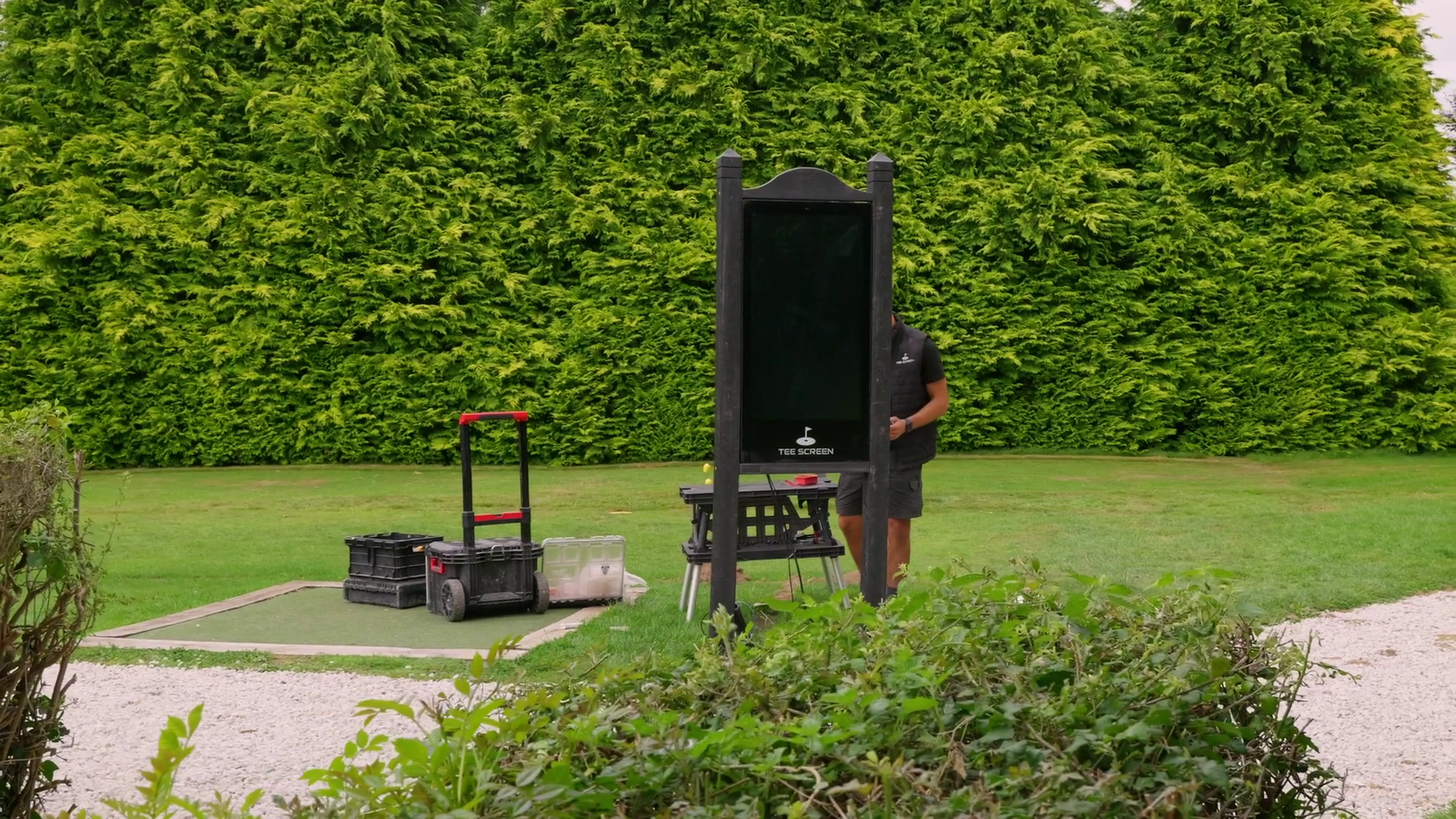

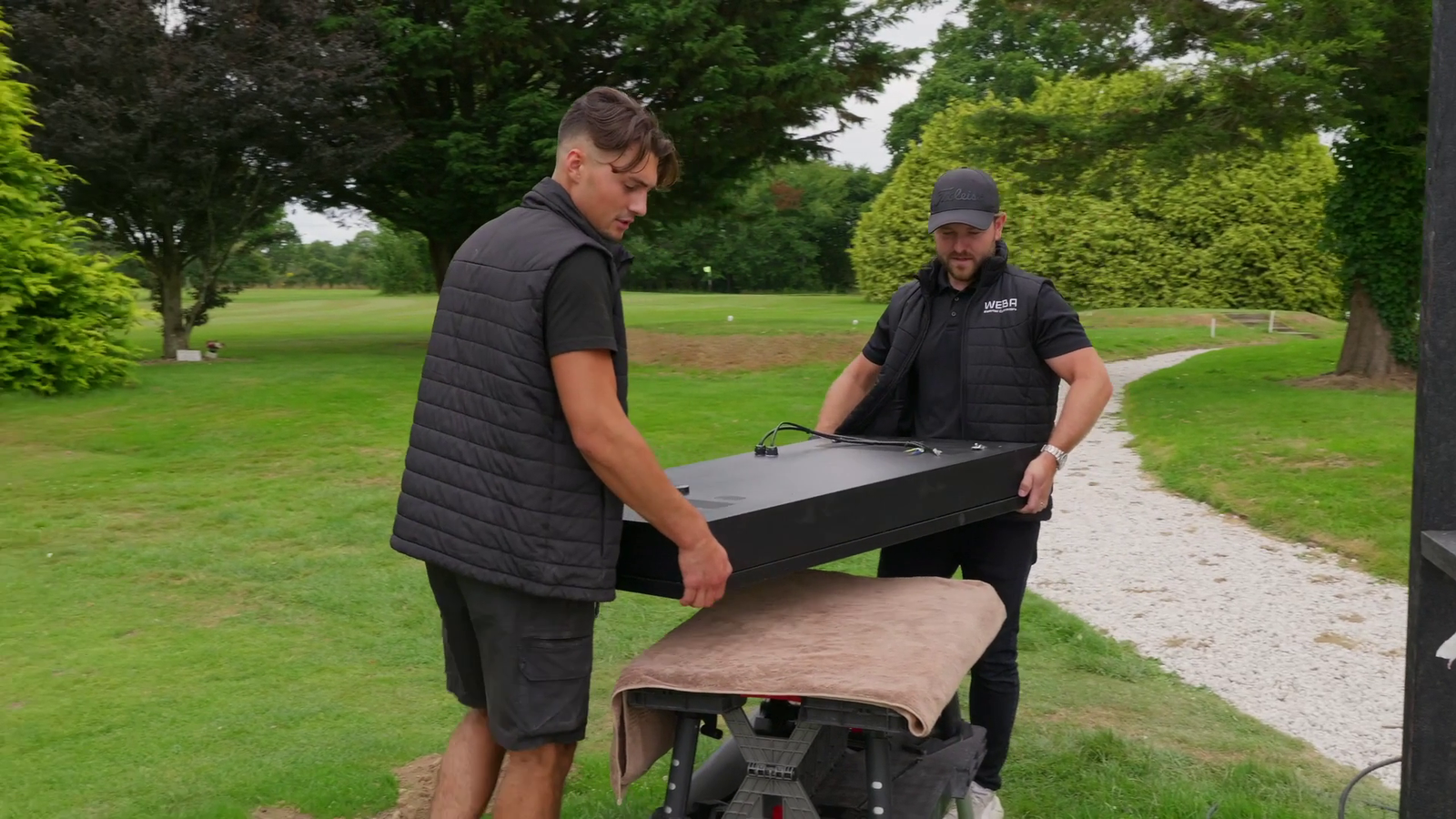

Professional Installation
Our installation team consists of trained engineers who manage every detail with precision. You get a seamless, professional experience from start to finish.
Framed Digital Signage Technical Specifications
| Screen Level | A+ Grade (BOE) |
| Screen Size | 43" |
| Resolution | 1920 × 1080p |
| Display Color | 16.7M |
| Response Time | 3ms |
| Contrast Ratio | 1200:1 |
| Brightness | 2000 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| CPU | RK3399 |
| RAM | 4GB DDR4 |
| ROM | 32GB |
| Decoding Resolution | 1920 × 1080p |
| Operating System | Android 9 |
| RTC Time | Supported |
| Wi‑Fi | 802.11 B/G/N |
| Ports | 2× USB 2.0, RJ‑45, LAN |
| LVDS | 1‑drive 50/60Hz LCD screen |
| Menu Language | English |
| Touch Technology | 10‑point capacitive touch |
| Input Voltage | AC 100–240V, 50/60Hz |
| Operating Temp | -40°C – +55°C (5%–95% RH) |
| Storage Temp | -20°C – 60°C (5%–95% RH) |
| Lifespan | 50,000 hours |
| Working Temperature | -30°C – 75°C |
| Spreading Temperature | -40°C – 80°C |
| LTE‑FDD Bands | B1 / B3 / B7 / B8 / B20 / B28A |
| LTE‑TDD Bands | B38 / B40 / B41 |
| WCDMA Bands | B1 / B8 |
| GSM/EDGE Bands | B3 / B8 |
| Carrier Certification | Deutsche Telekom / British Telecom |
| Compulsory Certification | UKCA |
